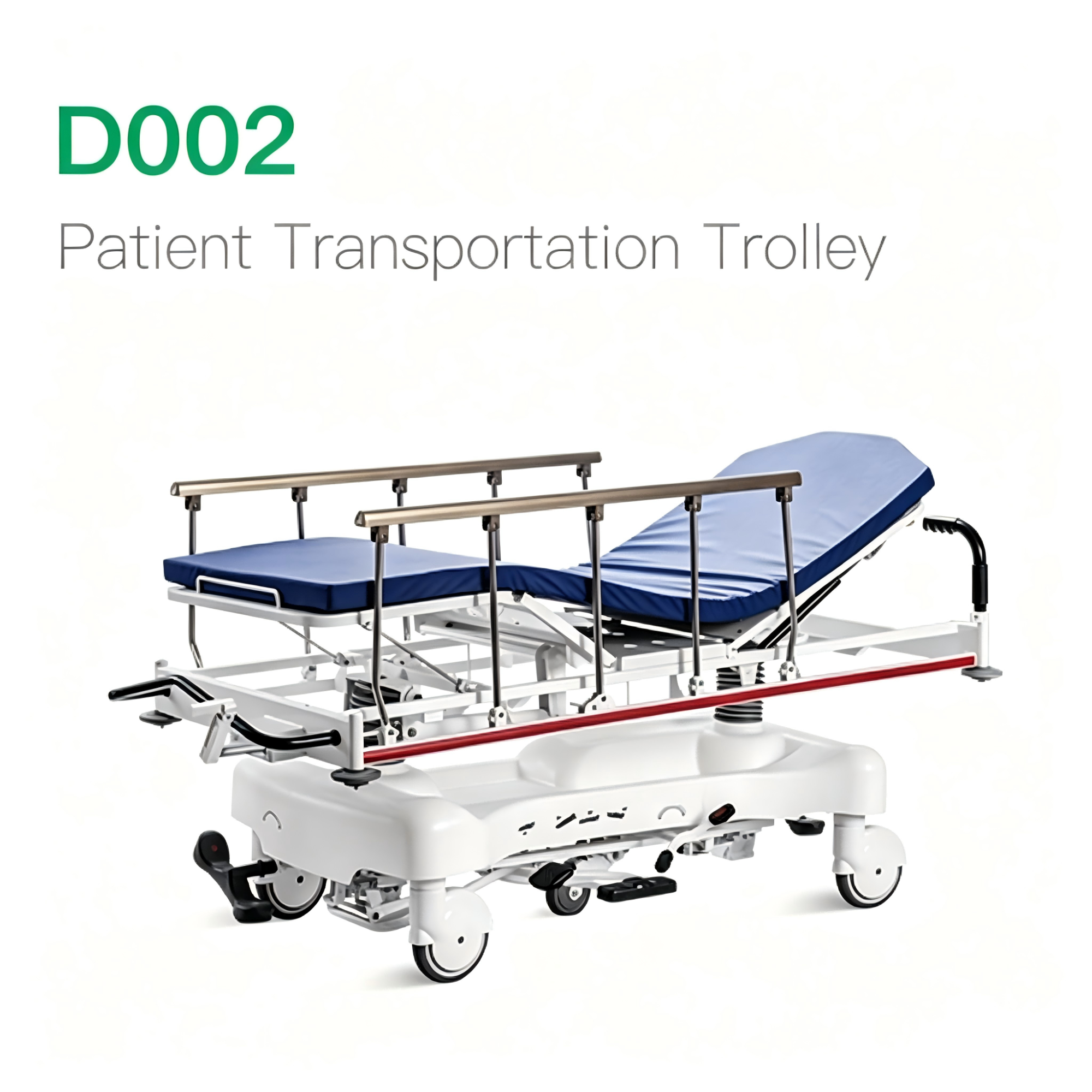

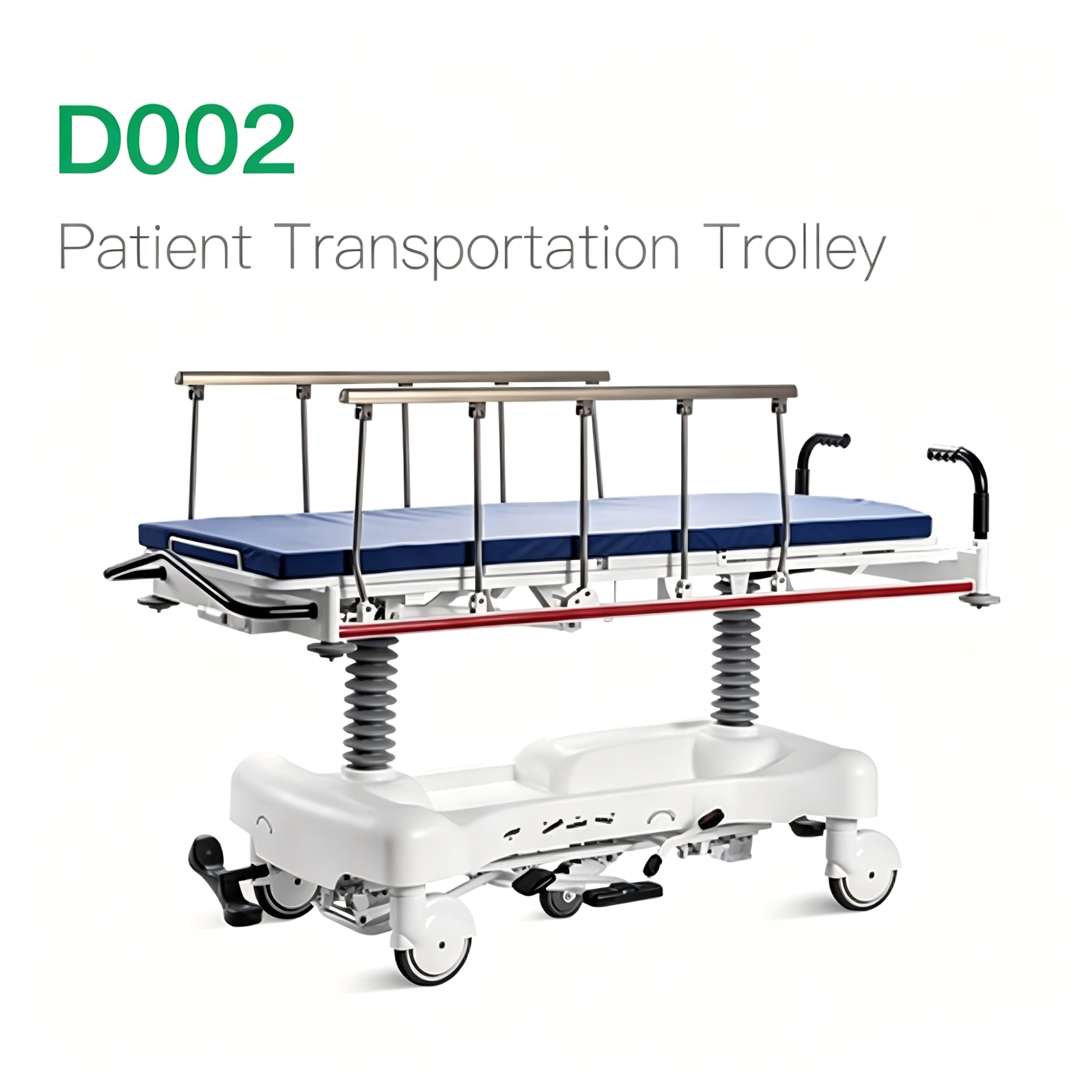

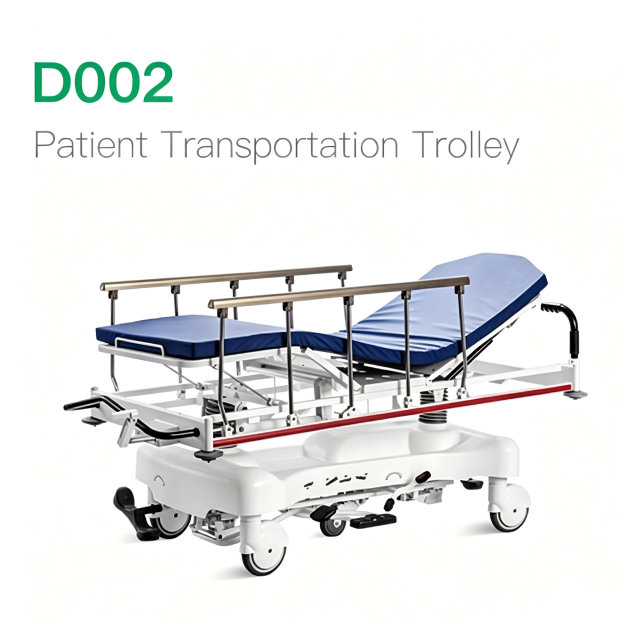

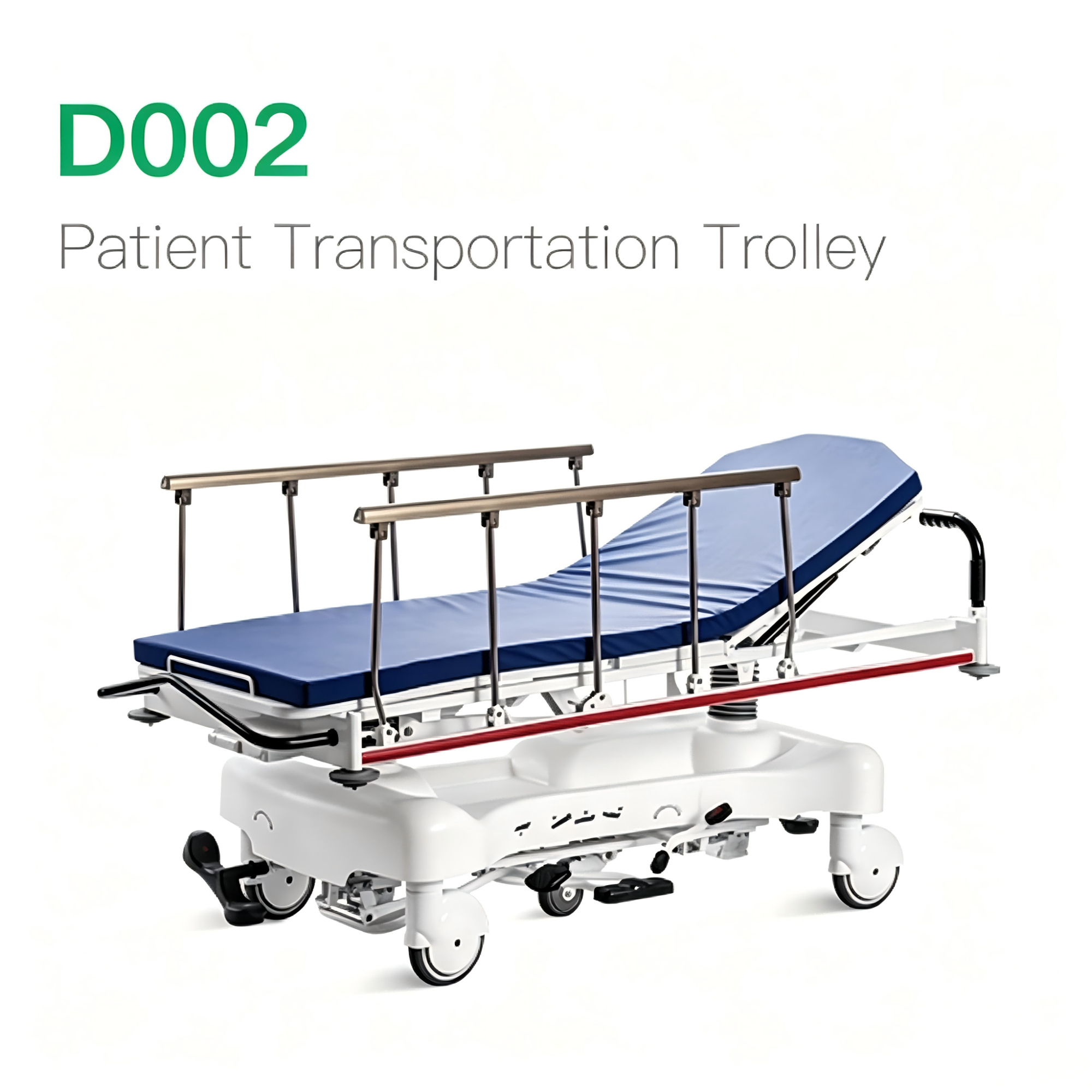

Patient Transportation Trolley

No.D002
Production Capacity: 30000 PCS. /Year
Payment Terms: L/C, T/T, Western Union, Money Gram
Material: Metal + ABS + Aluminum Alloy
Type: Hydraulic Transportation Trolley
Folded: Unfolded
Using Ambient: Hospital
Numbers of Function: Two-function
Certif
Download
View all downloads
  • Patient Transportation Trolley
  • Patient Transportation Trolley
  • Patient Transportation Trolley
  • Patient Transportation Trolley

Description

Technical Parameters

 External (LxWxH)  2100x850x(630-930)mm
 Back-rest Adjustment  0-75°(±10°)
 Knee-rest Adjustment  0-35°(±10°)

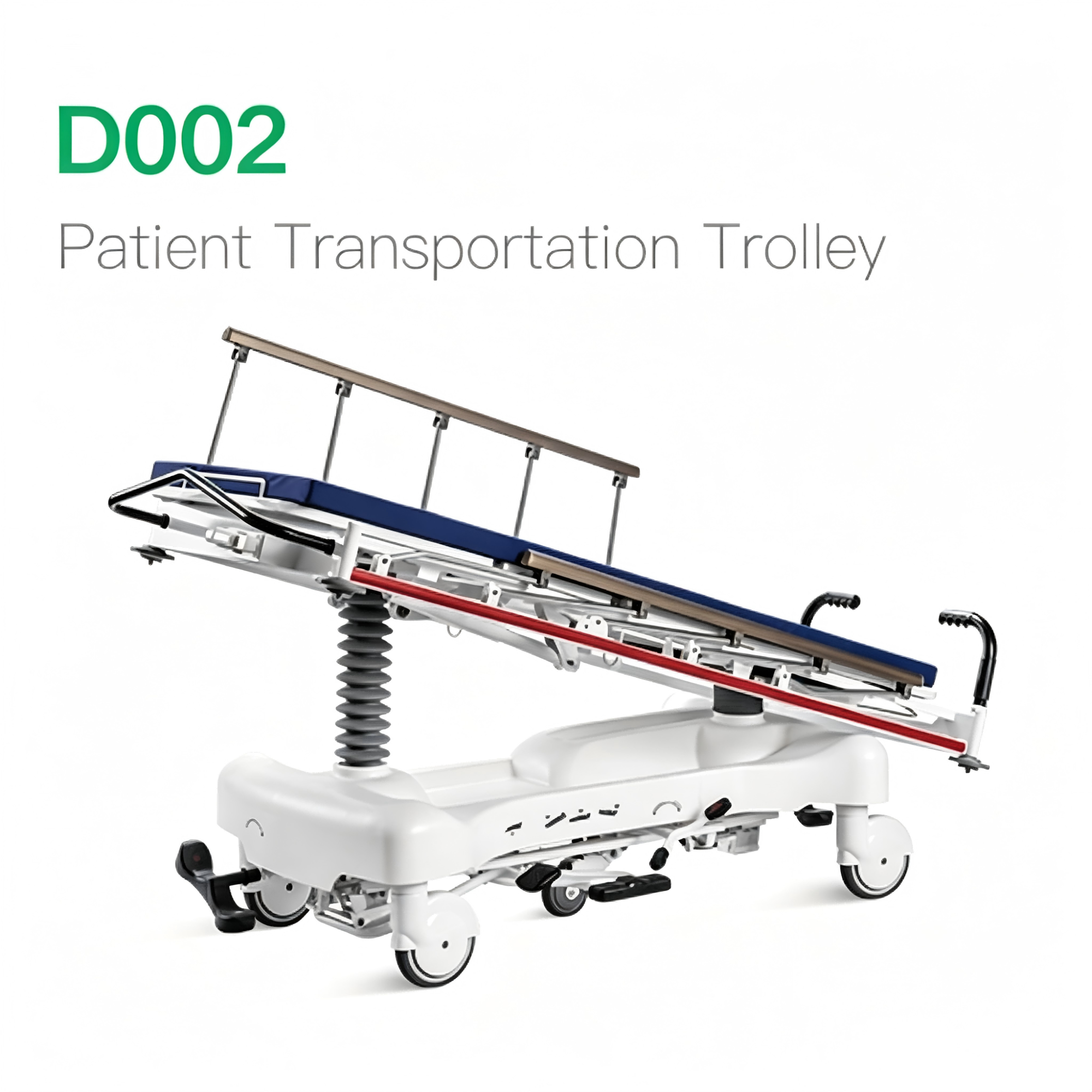

 Reverse Trendelenburg  15°
 Trendelenburg  15°

Technical Configuration
 USA Hydraulic Pump  2pcs
 Crank System  1set
 Back Rest Gas Spring  2pcs
 8” Castors with Central Locking  4pcs
 Emergency Push Handle  1set
 Direction Wheel  1pc
 Folding Side Rail  1set
 Φ74mm Wall Bumper Wheel  4pcs
 IV Pole Position  4pcs
 IV Pole  1set
 Mattress  1pc
 Central Locking Break Pedal  2sets
 Directional Wheel Release Pedal  2pcs
 X-ray Translucent Bed Platform  1set
