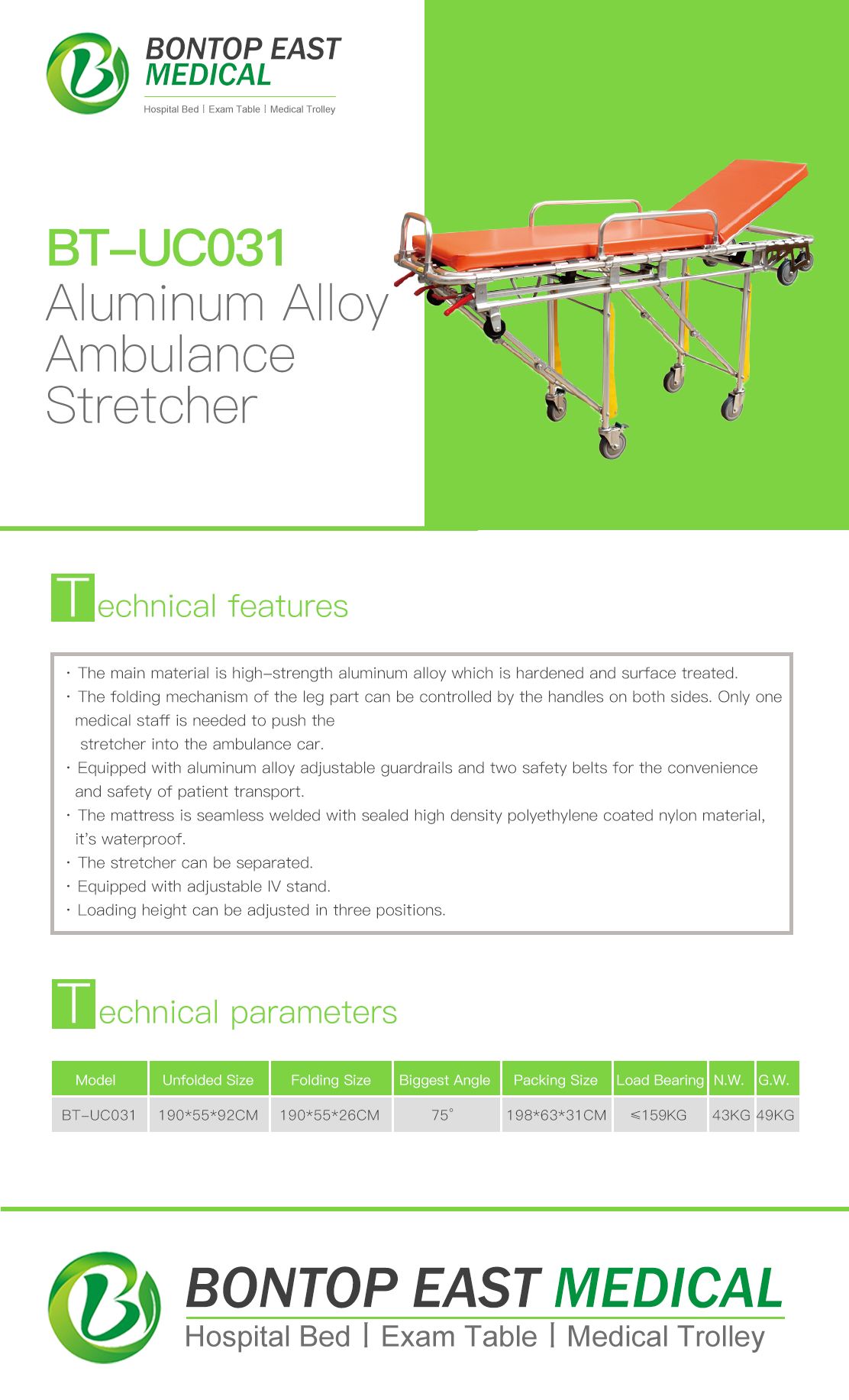

Technical features
· The main material is high-strength aluminum alloy which is hardened and surface treated.
· The folding mechanism of the leg part can be controlled by the handles on both sides. Only one medical staff is needed to push the stretcher into the ambulance car.
· Equipped with aluminum alloy adjustable guardrails and two safety belts for the convenience and safety of patient transport.
· The mattress is seamless welded with sealed high density polyethylene coated nylon material, it's waterproof.

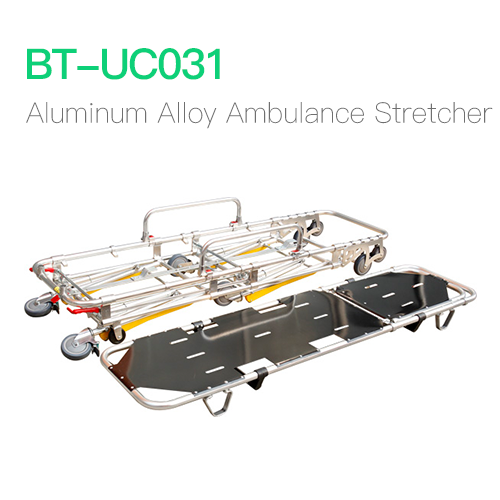

· The stretcher can be separated.
· Equipped with adjustable IV stand.
· Loading height can be adjusted in three positions.
Techniacl parameters
| Model |
Unfolded Size |
Folding Size |
Biggest Angle |
Packing Size |
Load Bearing |
N.W. |
G.W. |
| BT-UC031 |
190*55*92cm |
190*55*26cm |
75° |
198*63*31cm |
≤159kg |
43kg |
49kg |
