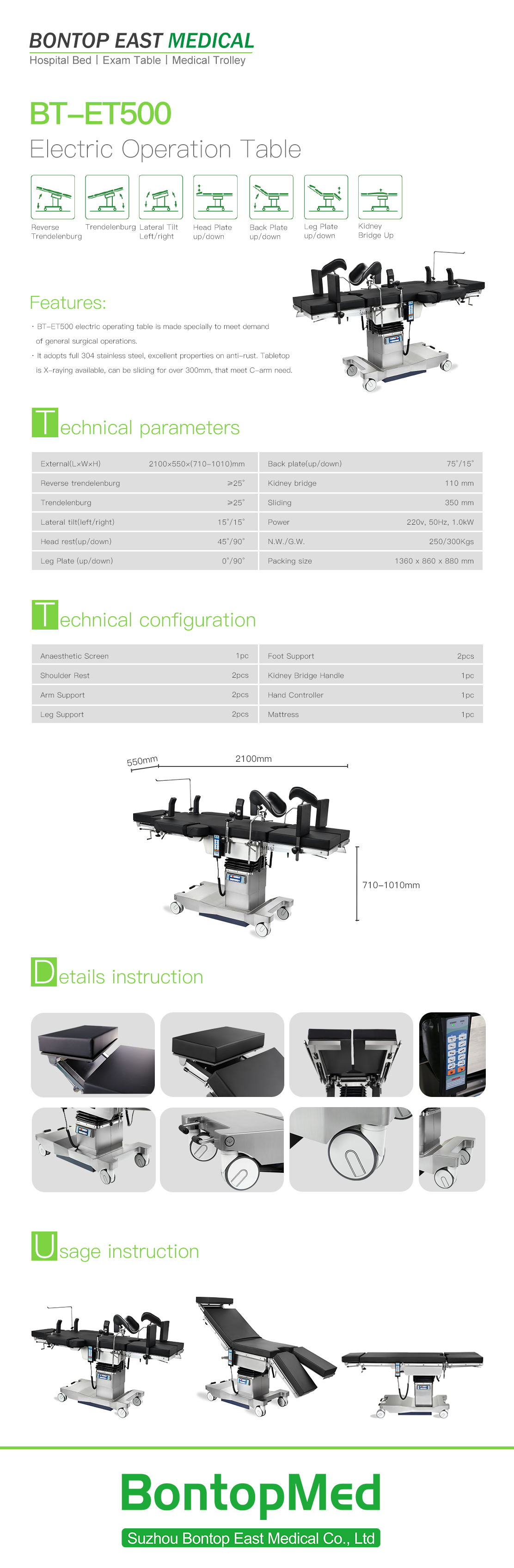

Technical Features:

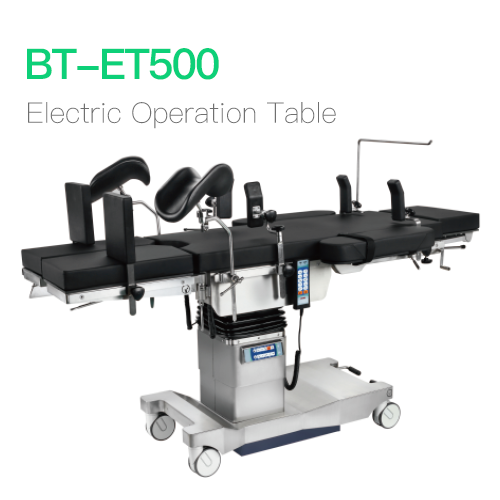

• BT-ET500 electric operating table is made specially to meet demand of general surgical operations.It adopts full 304 stainless steel,excellent properties on anti-rust.Tabletop is X-raying available.can be sliding for over 300mm,that meet C-arm need.
Technical Parameters:
External (LxWxH) |
2100x550x(710-1010)mm |
Trendelenburg/Reverse Trendelenburg |
25°/25° |
Lateral Tilt (left/right) |
15°/15° |
Head Rest (up/down) |
45°/90° |
Leg Plate (up/down) |
0°/ 90° |
Back Plate (up/down) |
75°/15° |
Kidney Bridge Elevation |
110 mm |
Sliding |
350 mm |
Technical Configuration:
Anaesthetic Screen |
1 pc |
Foot Support |
2 pcs |
Shoulder Rest |
2 pcs |
Kidney Bridge Handle |
1 pc |
Arm Support |
2 pcs |
Hand Controller |
1 pc |
Leg Support |
2 pcs |
Mattress |
1 set |
