Technical Features:
You can adjust the height of the table when needed, convenient position for operating personal.
The tabletop and base adopt frame construction, the cushion won’t move when the table works, and then you can take the cushion apart from the table for clean up.
Longitudinal slide up to 310 mm for free access to C-arm.
Extreme weight load capacity of 350 kgs. with highest safety and stability.
Memory pad with antistatic, waterproof design.
Standard override panel control makes the control safer.
Technical Parameters:
| External (LxWxH) |
2100x(550±20)x(560±50)mm |
| Trendelenburg/Reverse Trendelenburg |
35°/35° |

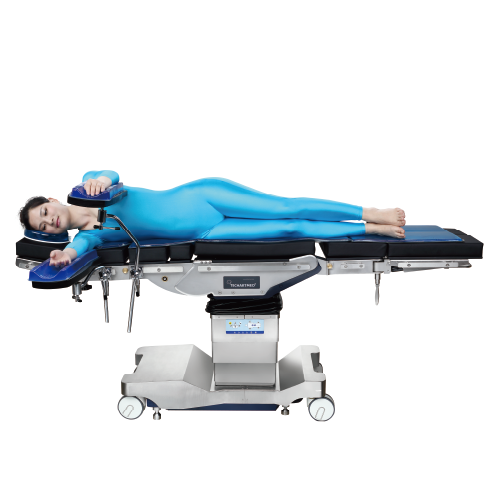

| Lateral Tilt (left/right) |
25°/25° |
| Head Rest (up/down/Reflex) |
40°/90°/40° |
| Leg Plate (up/down) |
90°/90° |
| Back Plate (up/down) |
85°/40° |

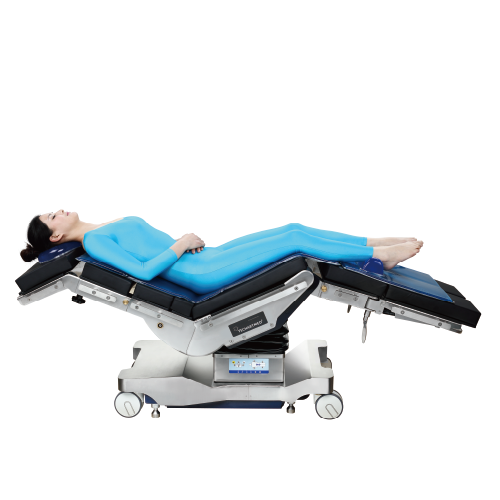

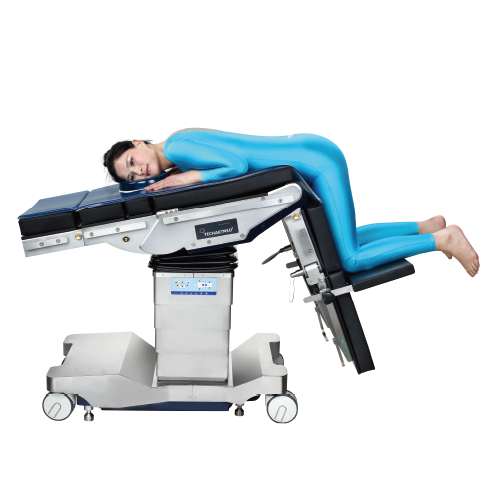

| Flex position |
220° |

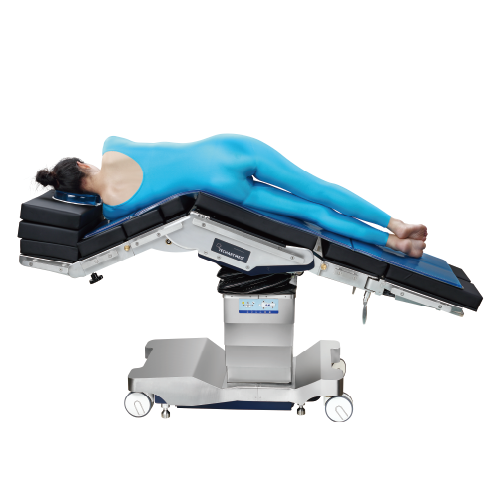

| Reflex position |
100° |
| Kidney Bridge Elevation |
120 mm |
| Sliding |
310 mm |
Technical Configuration:
| Anaesthesia Screen |
1 pc |
Long Fixing Clamp |
2 pcs |
| Body Support |
2 pcs |
Fixing Clamp |
8 pcs |
| Arm Board |
2 pcs |
Hand Remote |
1 pc |

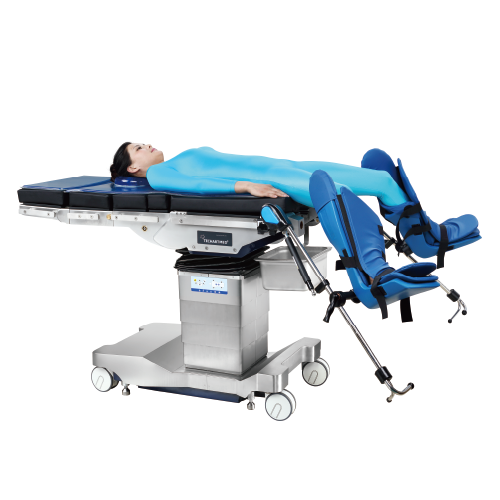

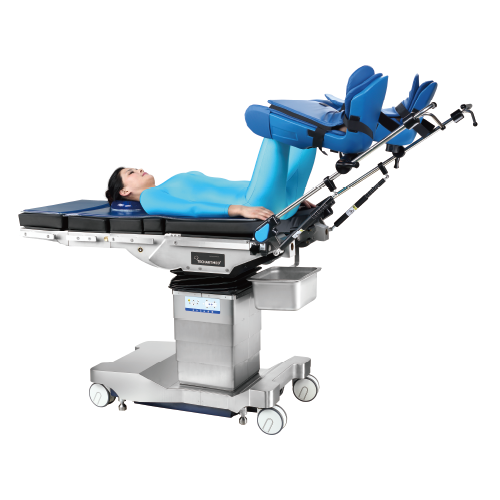

| Leg Support |
2 pcs |
Power Line |
1 pc |
| Head Plate |
1 pc |
Oilcan (with Oil) |
1 pc |
| Leg Plate |
2 pcs |
F20AL 250V FUSE |
1 pc |
| Mattress |
1 set |
F5AL 250V USE |
2 pcs |
| Foot Plate |
2 pcs |
|
|
